TopBrewer Pro Config TP4
TopBrewer Pro Config TP4
Download CAD drawings
Please download the configuration's CAD drawings to incorporate them into your project.
These formats ensure compatibility with your preferred design software, allowing seamless integration into your projects.
Available File Formats:
- Revit (.rfa)
- AutoCAD (.dwg, .dxf)
- Archicad (.gsm)
- SketchUp (.skp)
- PDF Documentation
Configuration Information
Configuration pre-installation checklist
Cabinet dimensions
Minimum under-counter space required: W600 mm x H700mm x D600mm

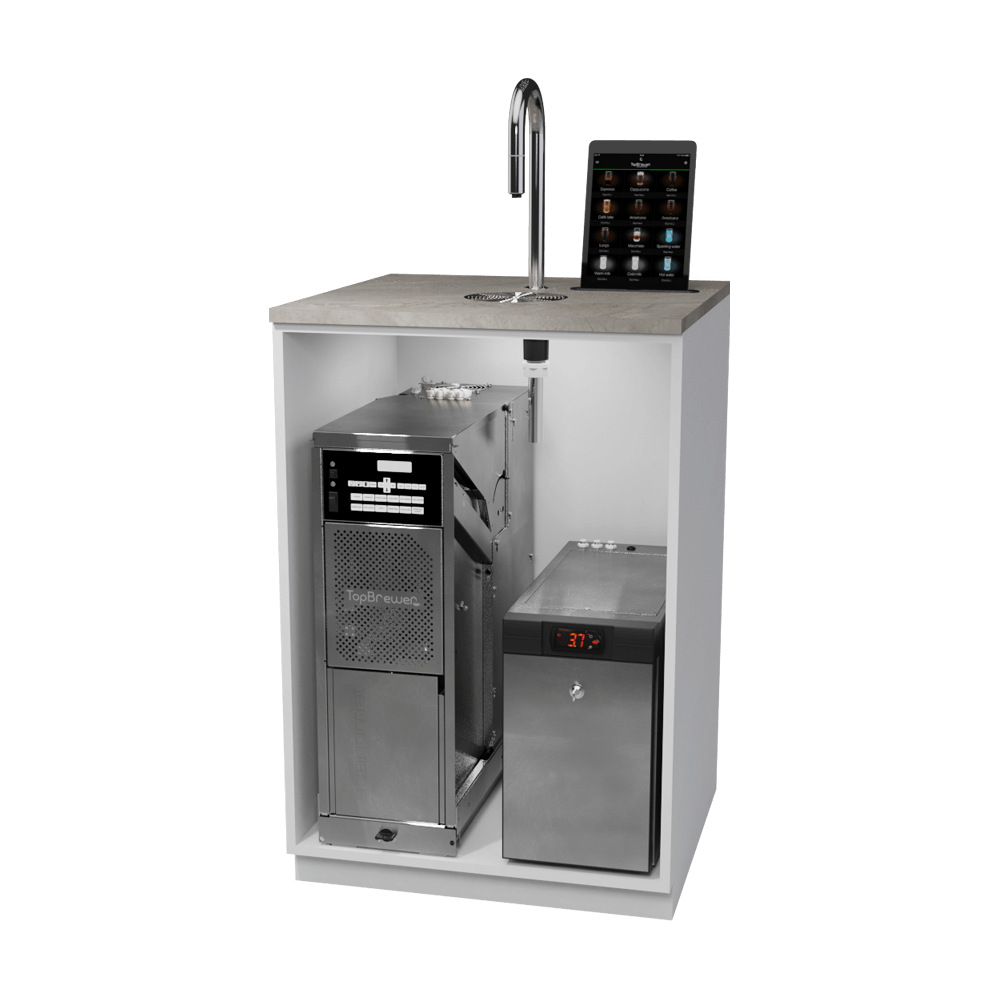

Illustration shows 1 x 600mm standard cabinet
Power supply
1 x 16 amp 380-415V 3P, hard wired -or- a 3P+N+E receptacle, IEC 309 for TopBrewer. (Alternative: 10-13 amp, 220-250V, 2P+E receptacle, IEC 309)
1 x 10 amp, 5 socket splitter for iPad, fridge, and ventilation
Mains water supply
1 x Washing machine valve 15mm x ¾”
Waste
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap
Ventilation
Ducted fan, via duct channels
Virtual design selector
The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design selector.
Colour options
iPad holder options
Chose between the standard inlay iPad holder or deluxe Boxit iPad holder to match your design
Product Information
(2)
Get a quote
Let us help you find the perfect TopBrewer configuration. TopBrewer is a modular solution and we have many more configurations available, including slimline, space-saving options. Please do not hesitate to contact us for help configuring the right solution for your project. Get in touch to arrange a chat with one of our specification experts.
