TopBrewer Pro Config TP3+TW

TopBrewer Pro Config TP3+TW

Download CAD drawings

Please download the configuration's CAD drawings to incorporate them into your project.

With standard iPad holder

With deluxe iPad holder

With standard iPad holder

With deluxe iPad holder

Configuration Information

Configuration pre-installation checklist

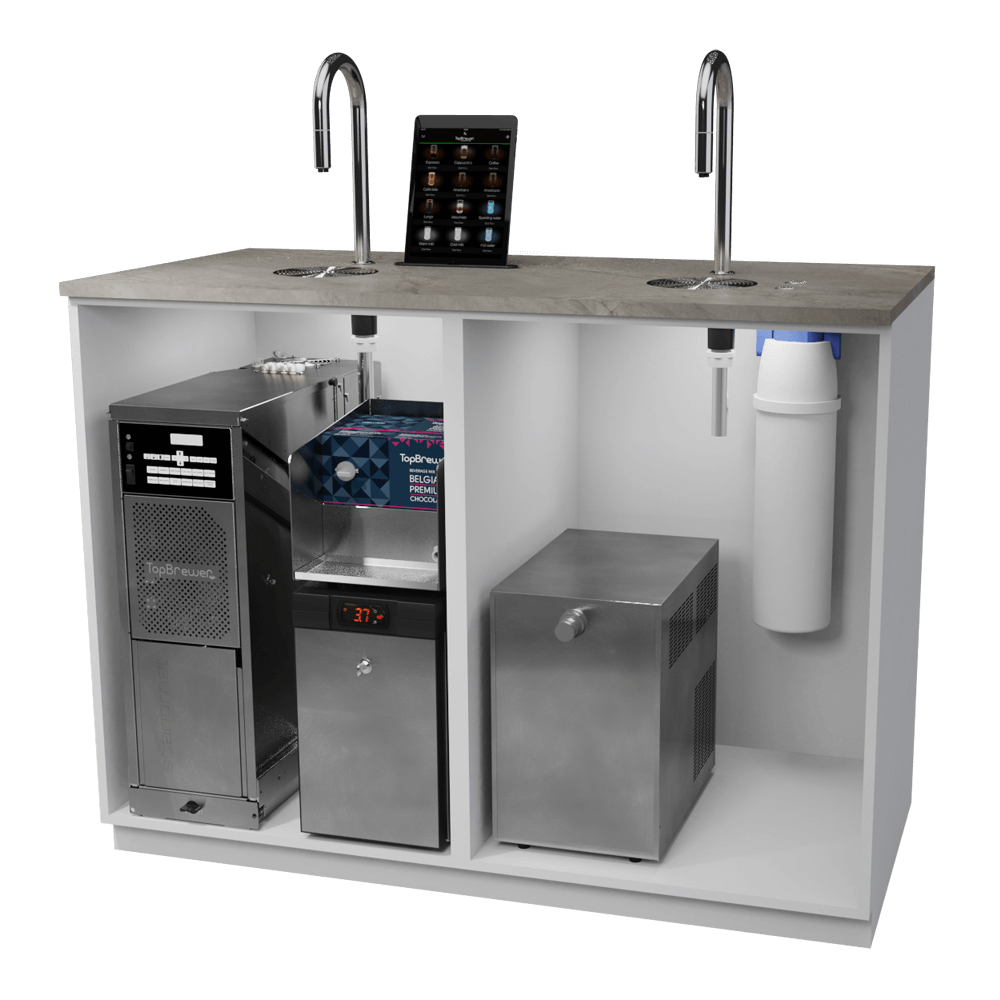

Cabinet dimensions
Minimum under-counter space required: W1000 mm x H700mm x D600mm
Illustration shows a 2 x 600mm standard cupboard

Power supply
1 x 16 amp 380-415V 3P, hard wired -or- a 3P+N+E receptacle, IEC 309 for TopBrewer. (Alternative: 10-13 amp, 220-250V, 2P+E receptacle, IEC 309)
1 x 10 amp, 5 socket splitter for iPad, fridge, and ventilation

Mains water supply
1 x Washing machine valve 15mm x ¾”

1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap

Ducted fan, via duct channels

See TopBrewer Pro pre-installation guide for details

Virtual design selector

The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design selector.

Colour options
iPad holder options

Chose between the standard inlay iPad holder or deluxe Boxit iPad holder to match your design

Get a quote

Let us help you find the perfect TopBrewer configuration. TopBrewer is a modular solution and we have many more configurations available, including slimline, space-saving options. Please do not hesitate to contact us for help configuring the right solution for your project. Get in touch to arrange a chat with one of our specification experts.
