TopBrewer Compact Config TC4
TopBrewer Compact Config TC4
CAD drawings
(4)
Product Information
Pre-installation guide
Cabinet dimensions:
Minimum under-counter space required: W600 mm x D600mm x H700mm

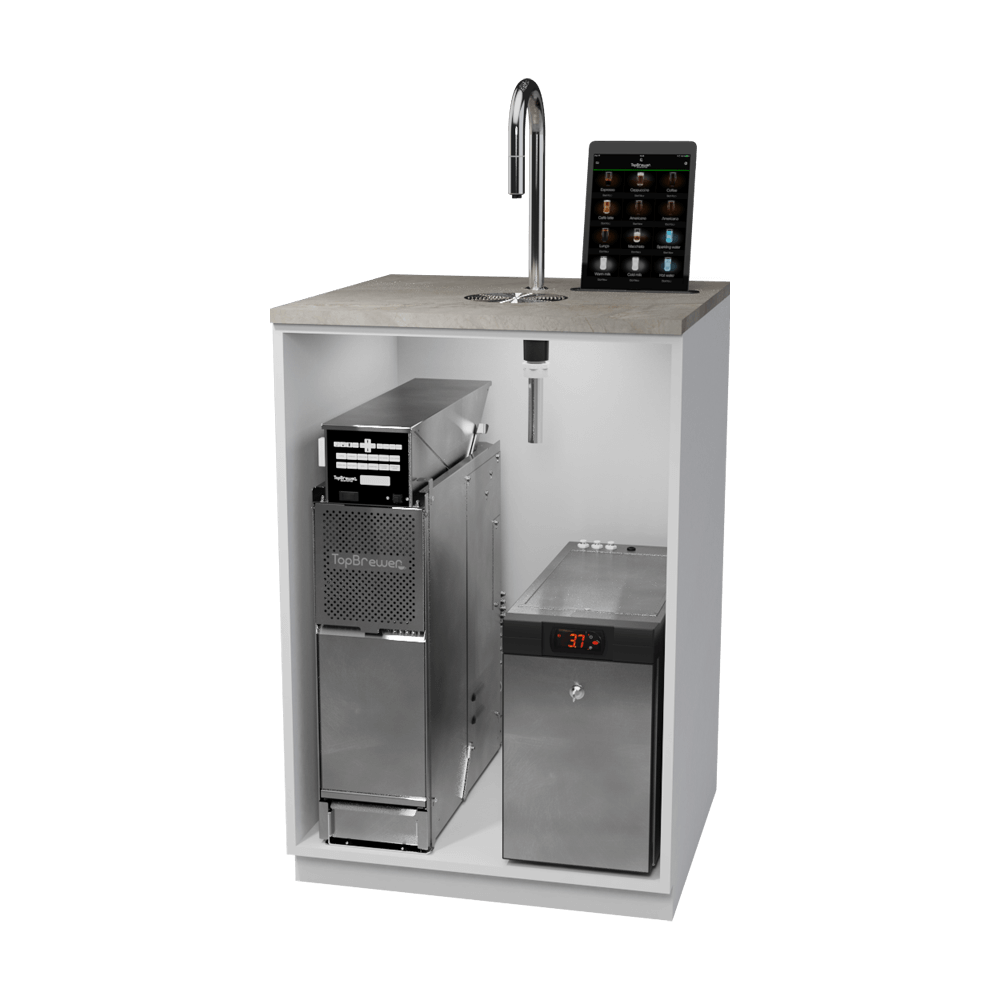

The illustration shows a 2 x 600mm standard cupboard
Power supply:
1 x 20 amp 1P, 220-250V hard wired -or- a 2P+E receptacle, IEC 309.
Alternative: 10-13 amp, 220-250V, 2P+E receptacle, IEC 309.
1 x 10 amp, 5 socket splitter for iPad, fridge & chiller and ventilation
Mains water supply:
1 x Washing machine valve 15mm x ¾”
Waste:
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap
Ventilation
Ducted fan, via duct channels
See the installation guide for details
Design options
The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design tool.
3D configurator
Faucet colour options
Not quite what you are looking for?
We have many more TopBrewer configurations available, including space-saving options. Please do not hesitate to contact us for help to configure the right solution for your project.
