TopBrewer Config TC4
TopBrewer Config TC4
Download 3D CAD drawings
(2)

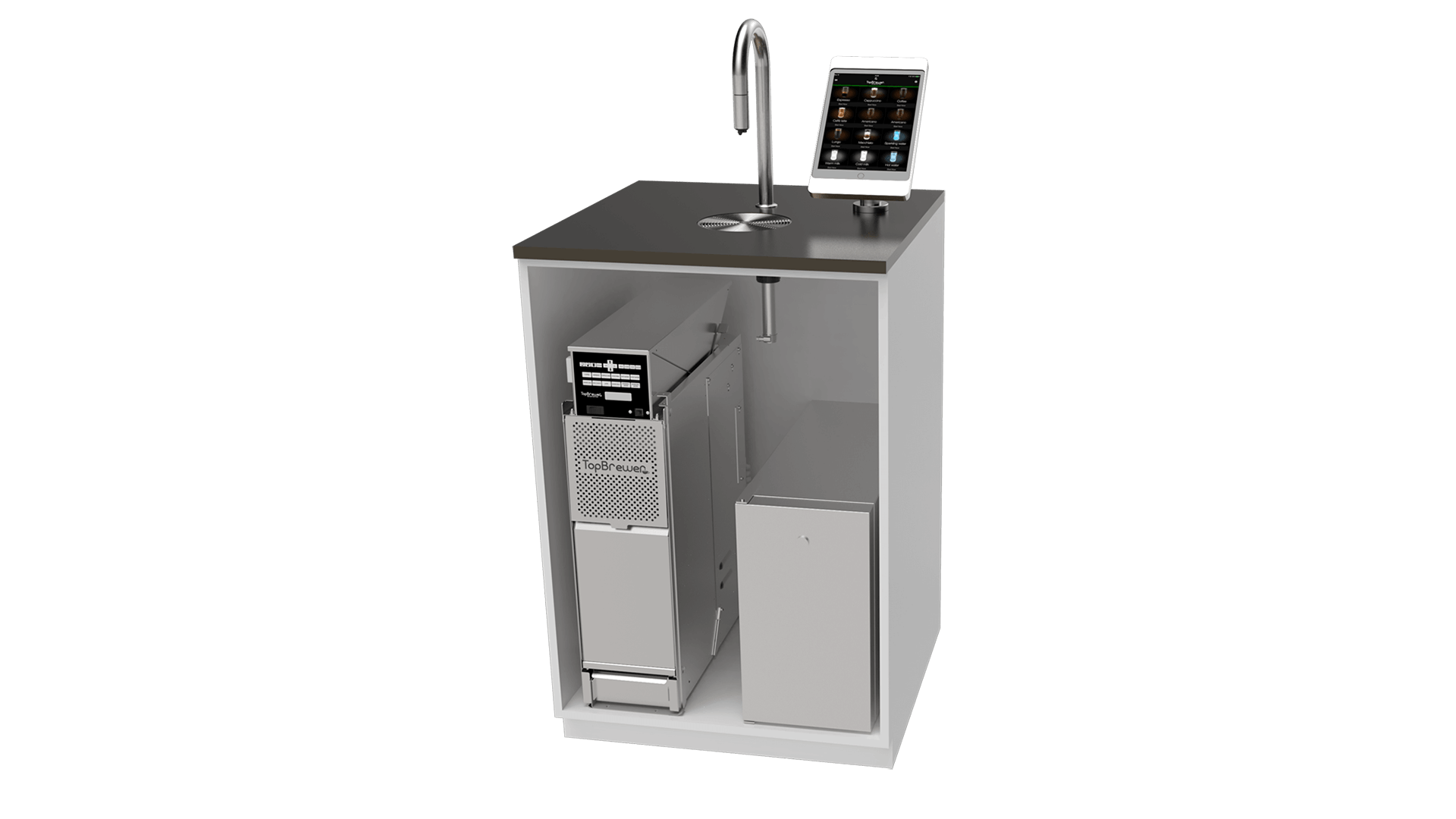

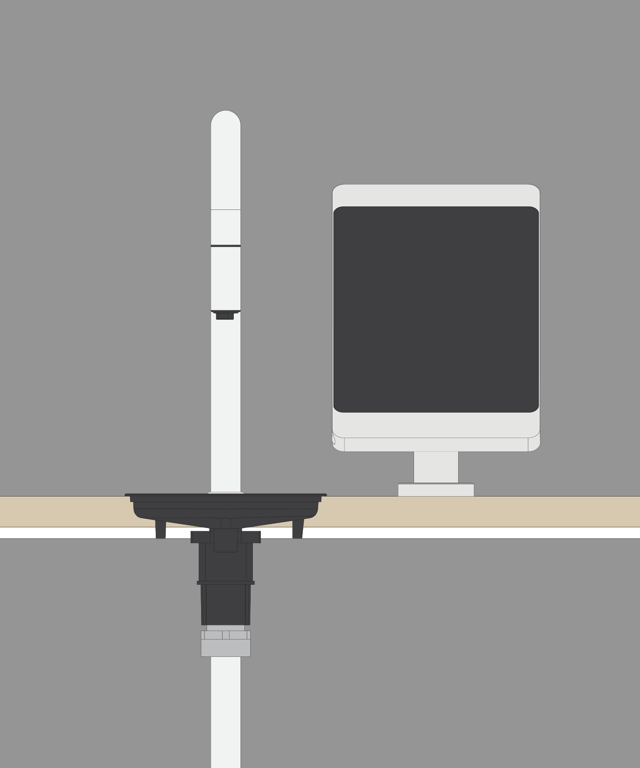

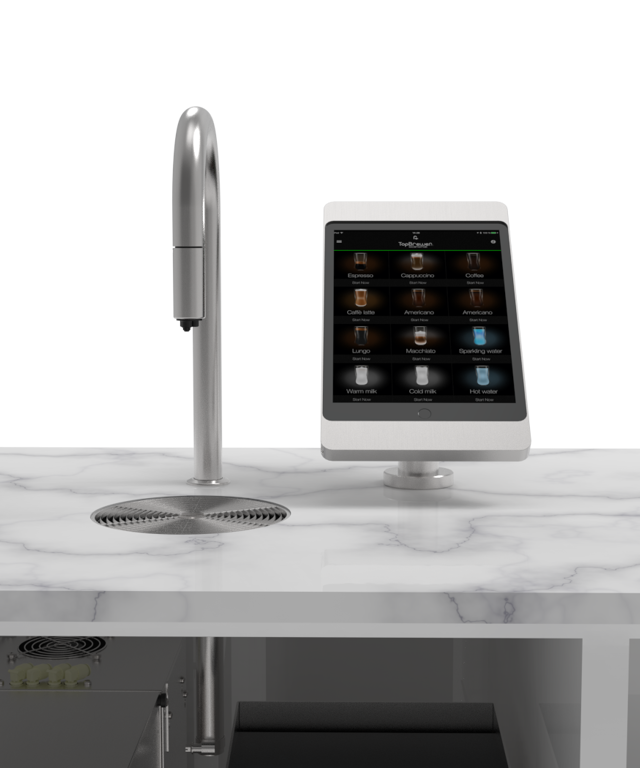

With Deluxe iPad holder
Get 3D CAD drawing

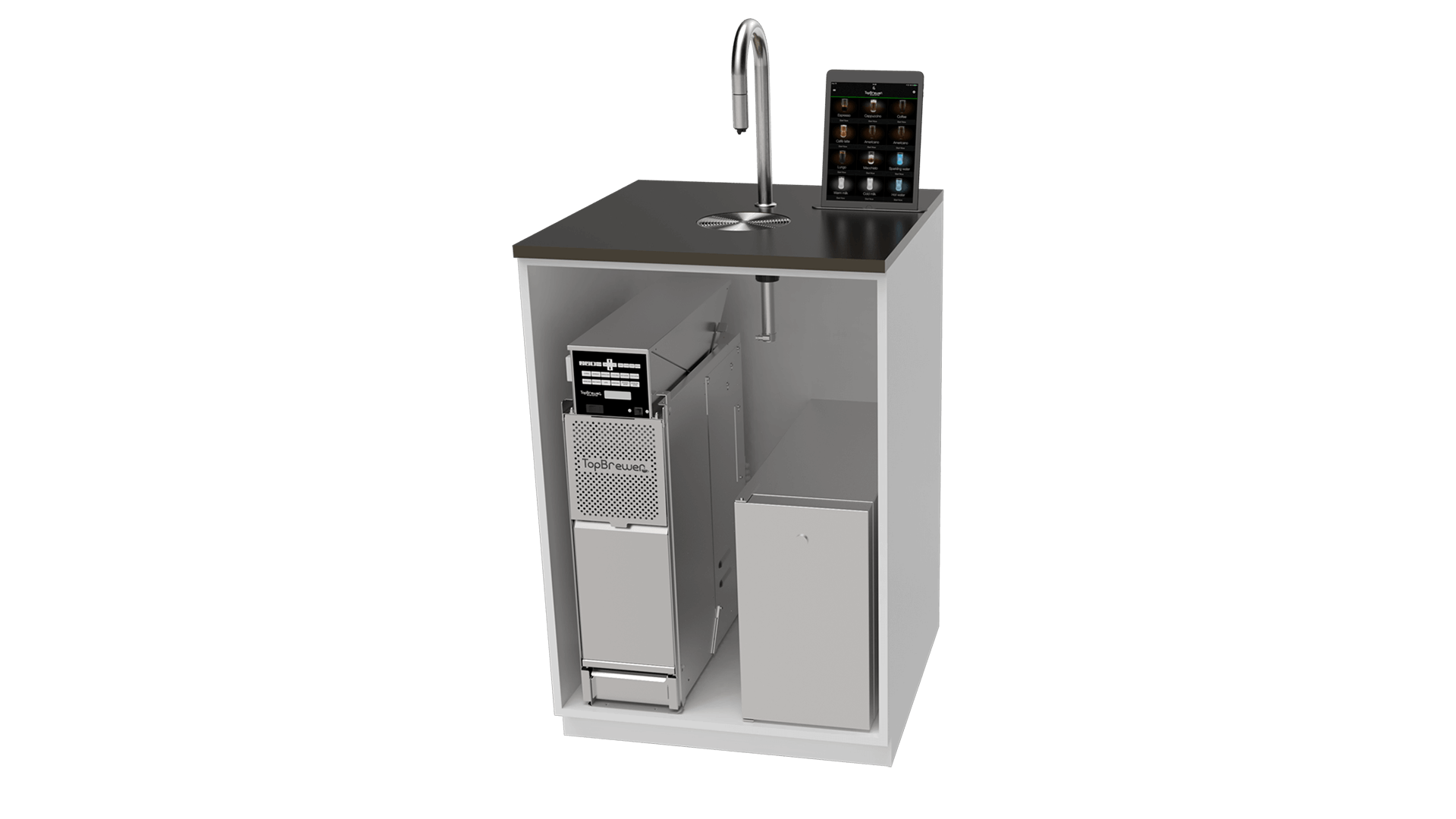

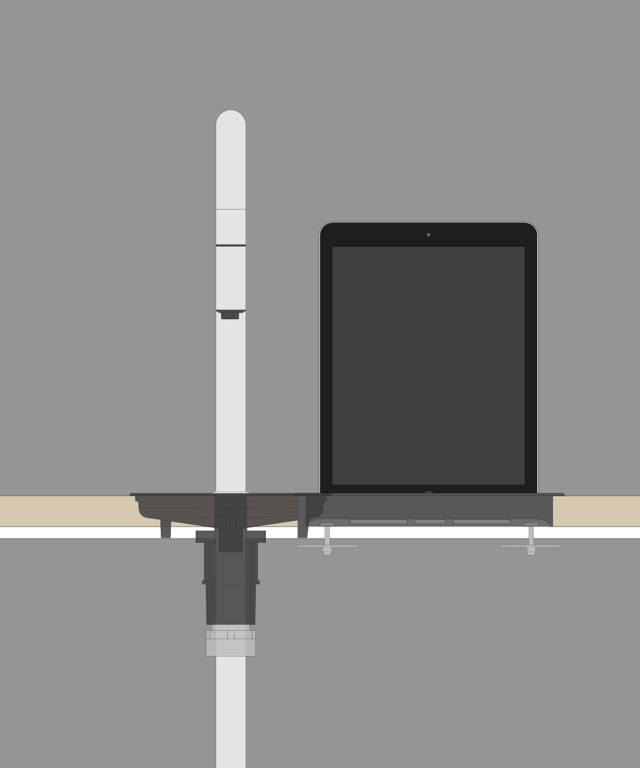

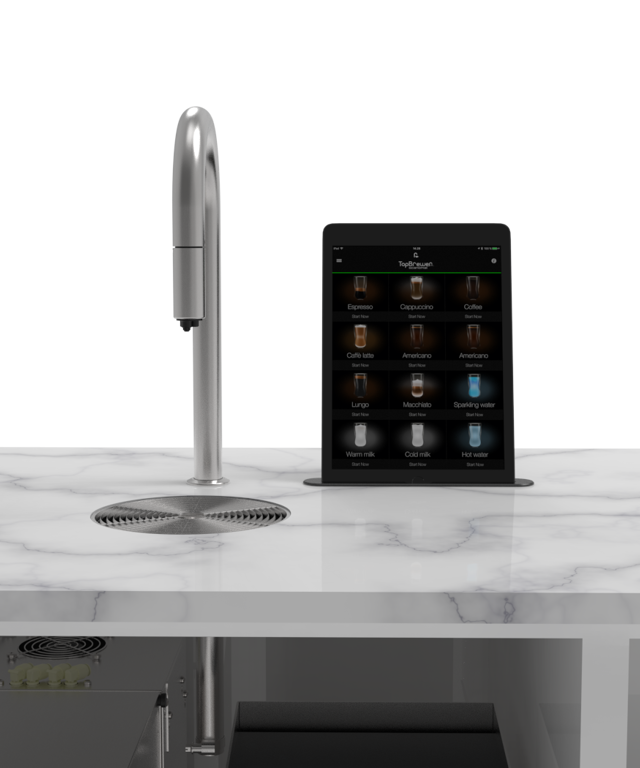

With standard iPad holder
Get 3D CAD drawing
Product Information
Pre-installation checklist: UK & Ireland
Cabinet dimensions:
Minimum under-counter space required: W600 mm x D600mm x H700mm
Illustration shows 2 x 600mm standard cupboards
Power supply:
1 x 32amp single phase commando plug with isolator switch for TopBrewer
1 x 13amp double socket for iPad and fridge
Mains water supply:
1 x Washing machine valve 15mm x ¾”
Waste:
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap
Ventilation:
Routed in doors and kick-plate
See installation guide for details
Design options
The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design selector.
Downloads
Not quite what you are looking for?
We have many more TopBrewer configurations available, including space-saving options. Please do not hesitate to contact us on 0800 032 7581 or email architect@scanomat.co.uk for help to configure the right solution for your project.
