TopBrewer Config TC2

TopBrewer Config TC2

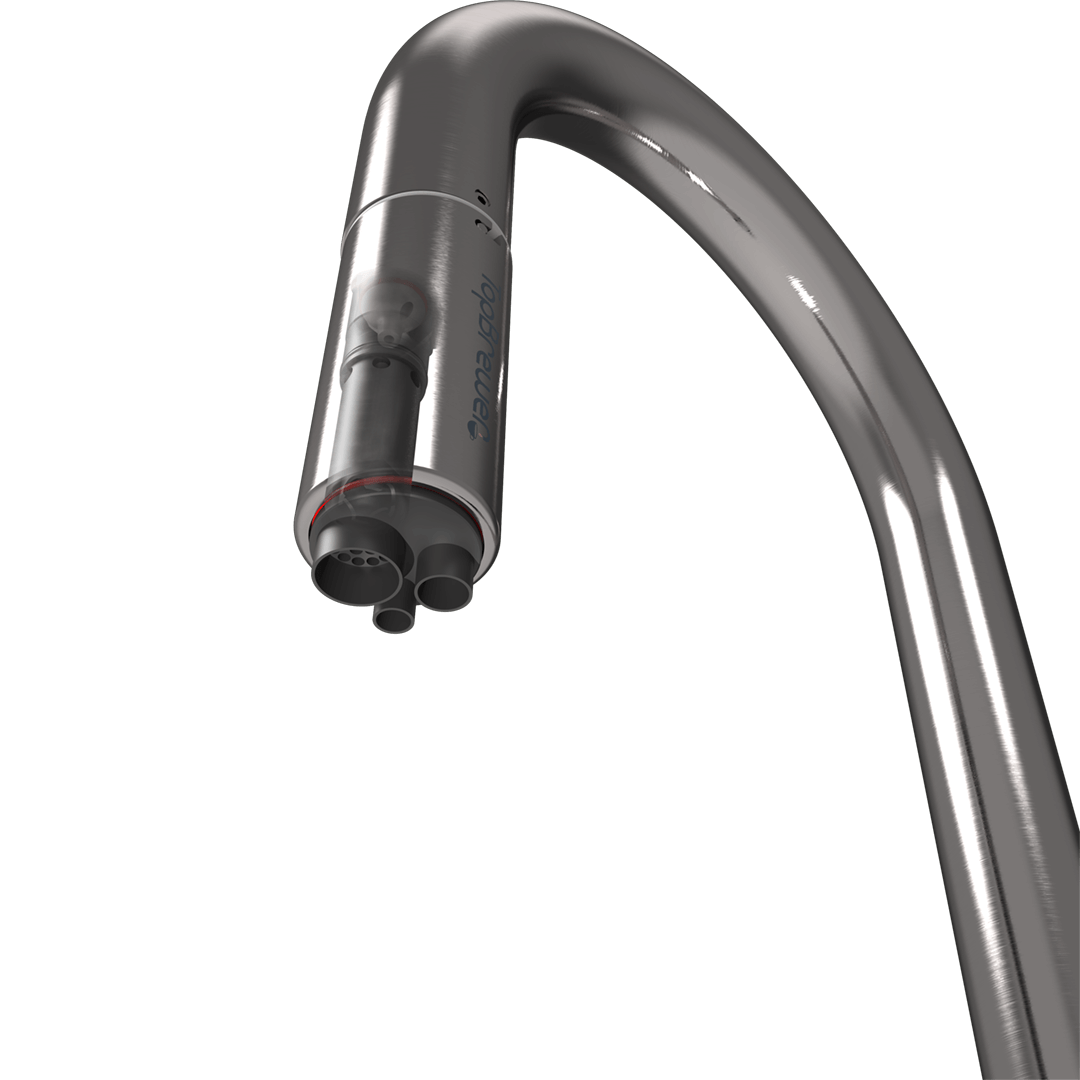

A stainless steel TopBrewer faucet with black coffee from Amokka®

Download 3D CAD drawings

(2)

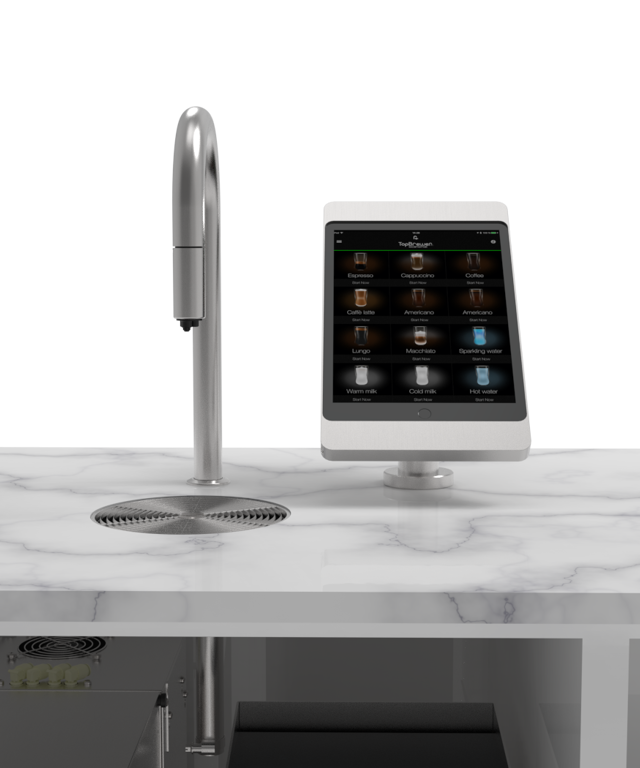

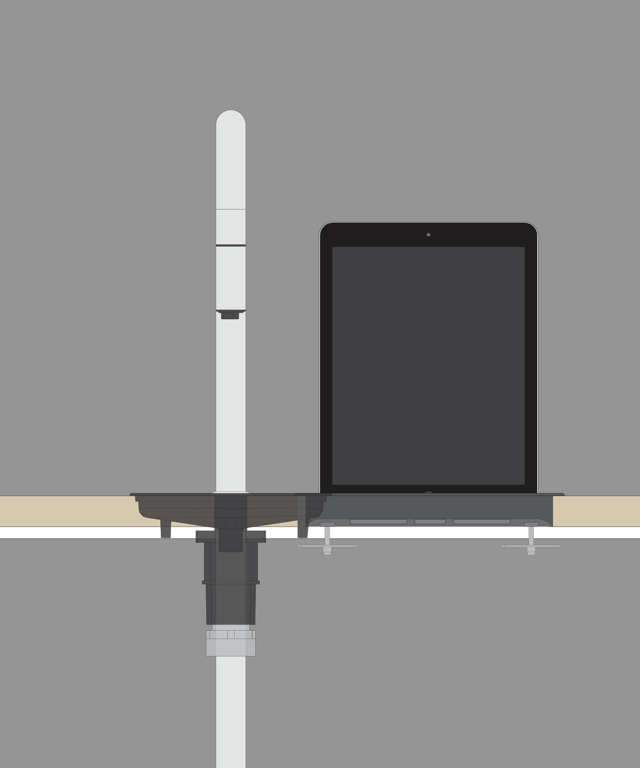

With Deluxe iPad holder
Get 3D CAD drawing

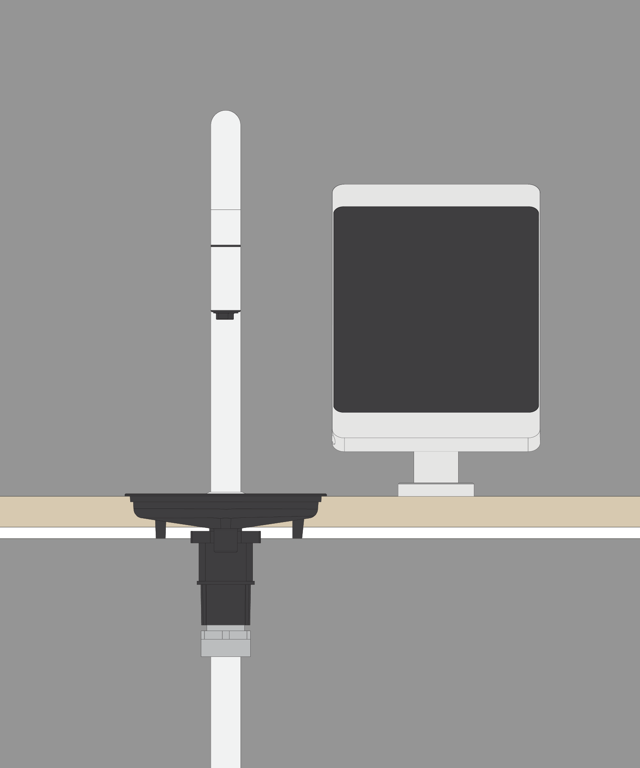

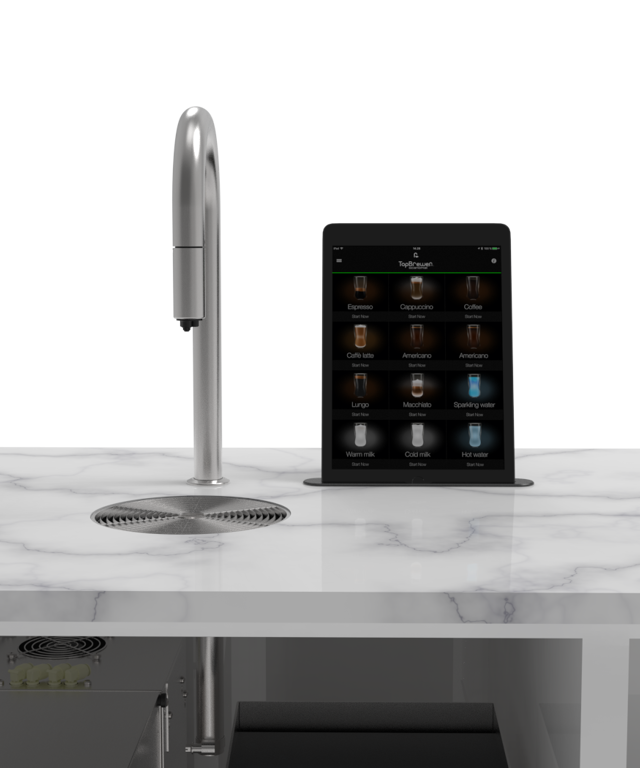

With standard iPad holder
Get 3D CAD drawing

Product Information

Pre-installation checklist: UK & Ireland

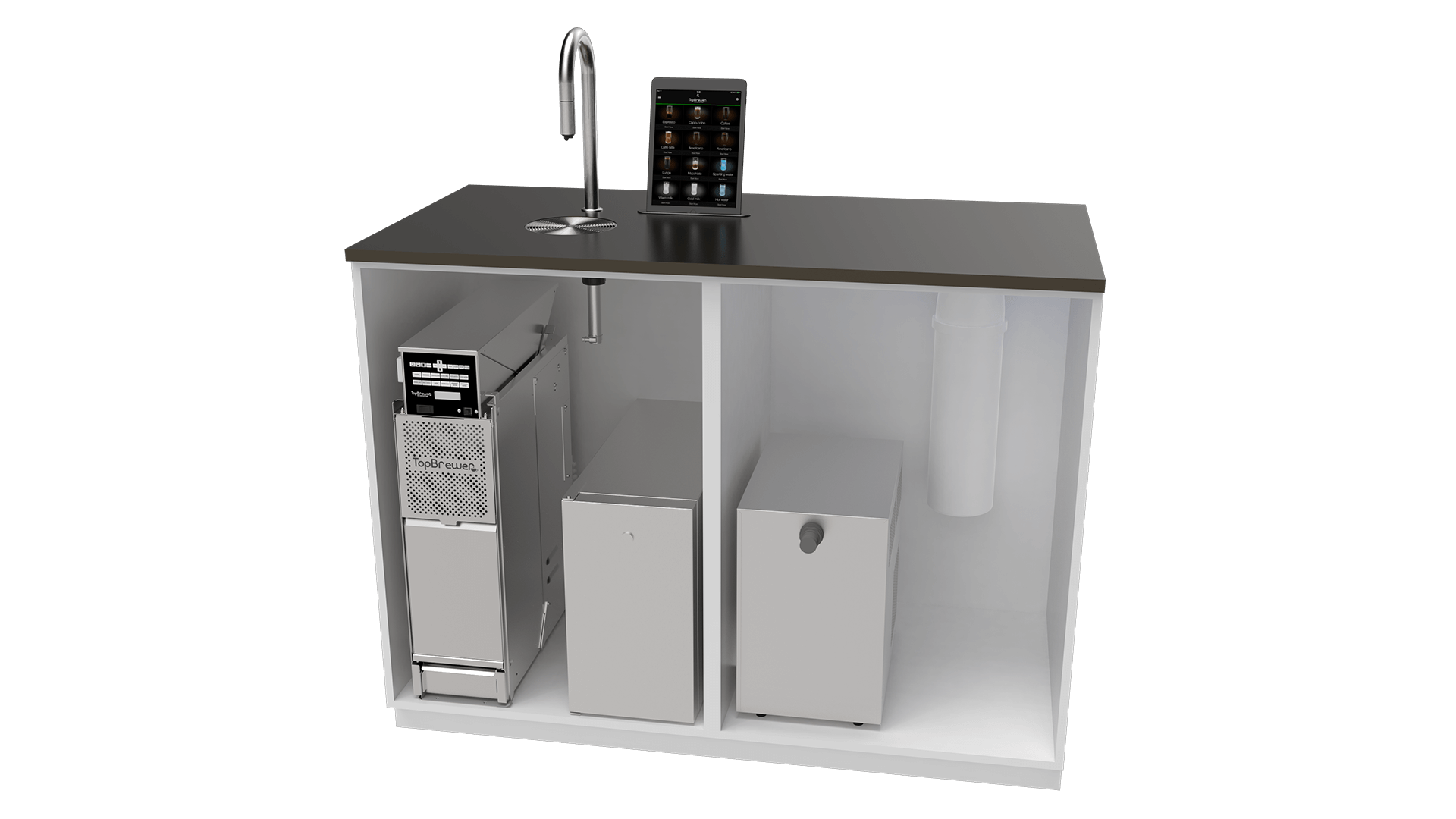

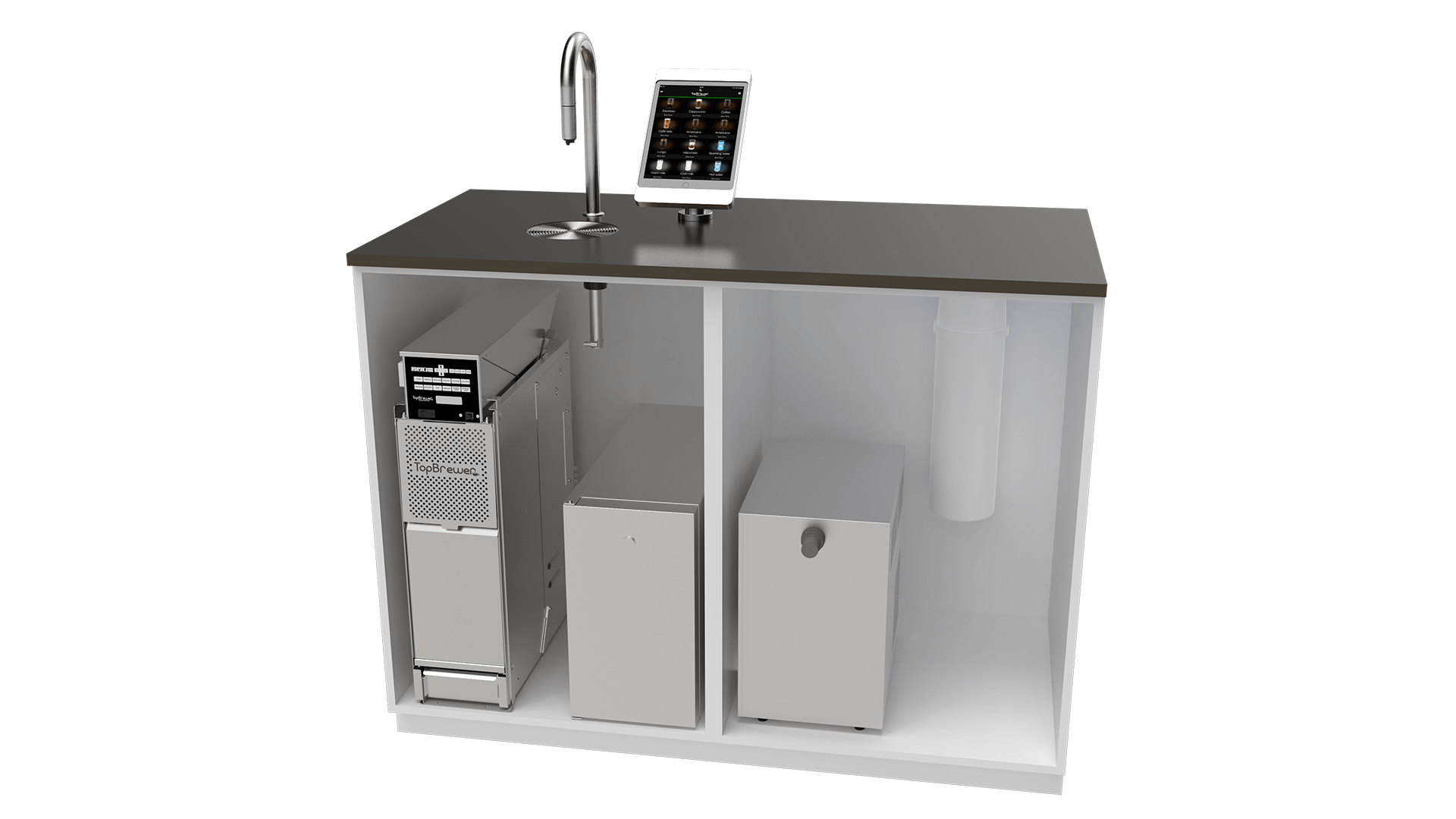

Cabinet dimensions:

Minimum under-counter space required: W600 mm x D600mm x H700mm

Illustration shows 2 x 600mm standard cupboards

Power supply:

1 x 32amp single phase commando plug with isolator switch for TopBrewer

2 x 13amp double socket for iPad, fridge & chiller;

Mains water supply:

1 x Washing machine valve 15mm x ¾”

Waste:

1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap

Ventilation:

Routed in doors and kick-plate

See installation guide for details

Design options

The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design selector.
