TopWater Config TW3

TopWater Config TW3

Download CAD drawings

Please download the configuration's CAD drawings to incorporate them into your project.

With standard iPad holder

With deluxe iPad holder

With standard iPad holder

With deluxe iPad holder

Configuration Information

Configuration pre-installation checklist

Cabinet dimensions
Minimum under-counter space required: W500 mm x D500mm x H700mm

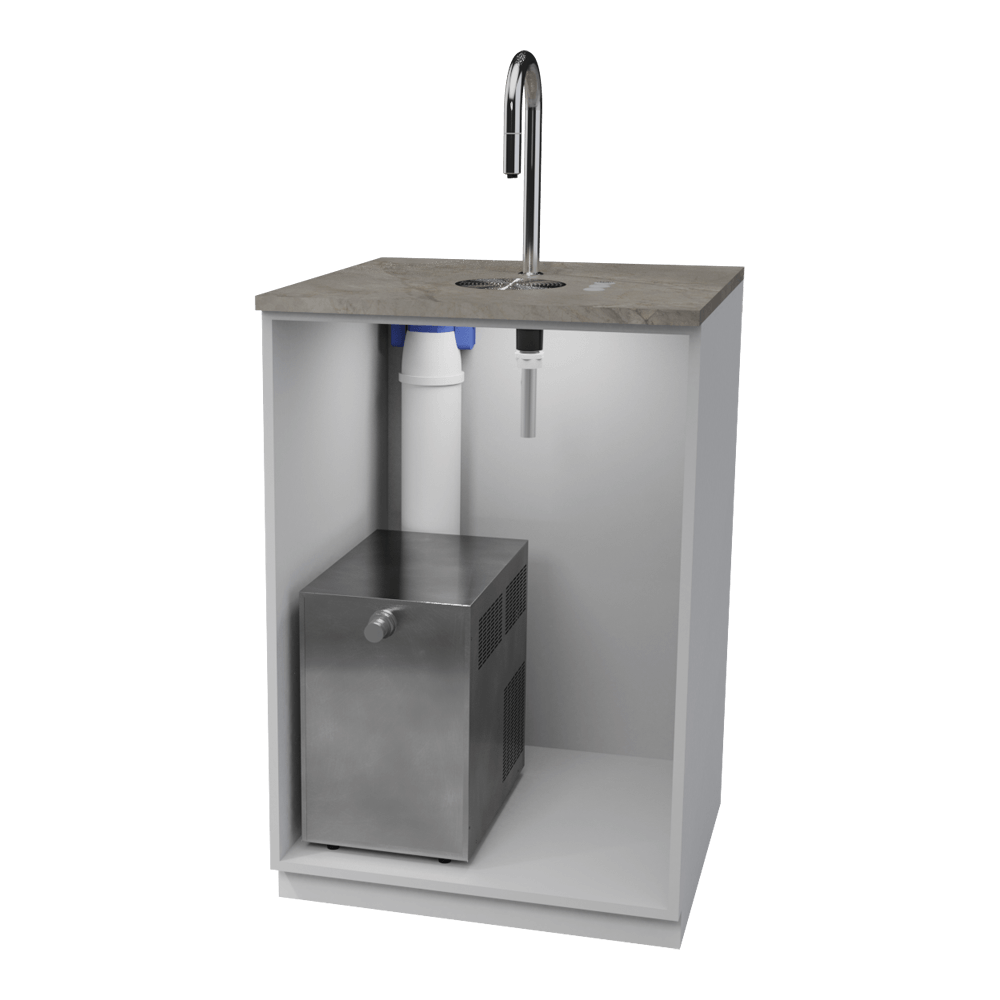

The illustration shows a 600mm standard cupboard.

Power supply
1 x 10 amp, 2 socket splitter for Cooler and ventilation

Mains water supply
1 x Washing machine valve 15mm x ¾”

Waste
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap

Ventilation
Ducted fan, via duct channels

See TopWater pre-installation guide for details

Colour options
iPad holder options

Chose between the standard inlay iPad holder or deluxe Boxit iPad holder to match your design

Get a quote

Let us help you find the perfect TopWater configuration. Please do not hesitate to contact us for help configuring the right solution for your project. Get in touch to arrange a chat with one of our specification experts.
