TopBrewer Pro Config TP3
TopBrewer Pro Config TP3
Download 3D CAD drawings
(4)
See specification information for TopBrewer products on NBS Source - the platform that helps you find, technically access and specify the right products for your construction project.
For additional help, please contact us: sales@scanomat.co.uk
Product Information
Pre-installation checklist: UK & Ireland
Cabinet dimensions:
Minimum under-counter space required: W600 mm x D600mm x H700mm

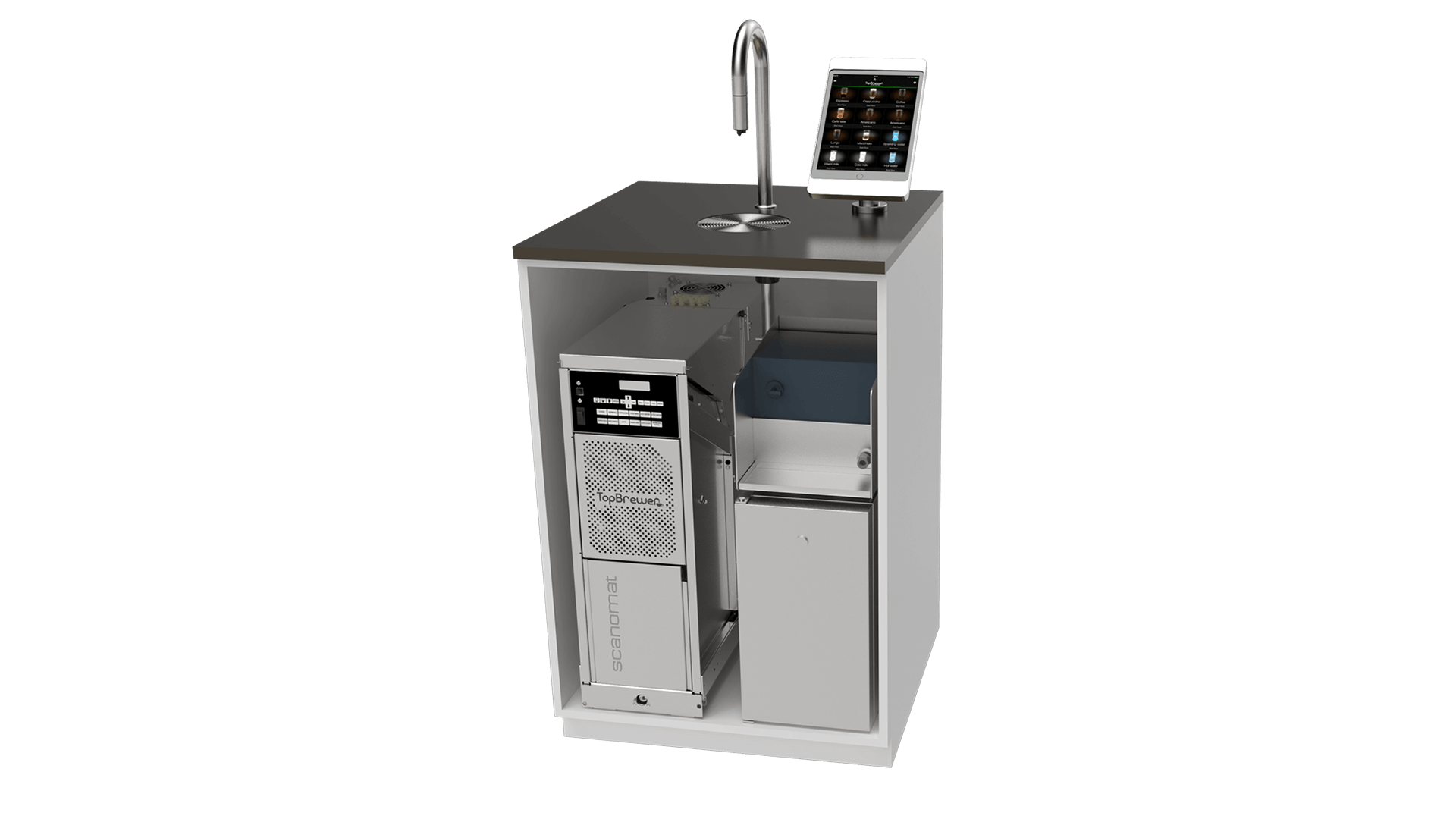

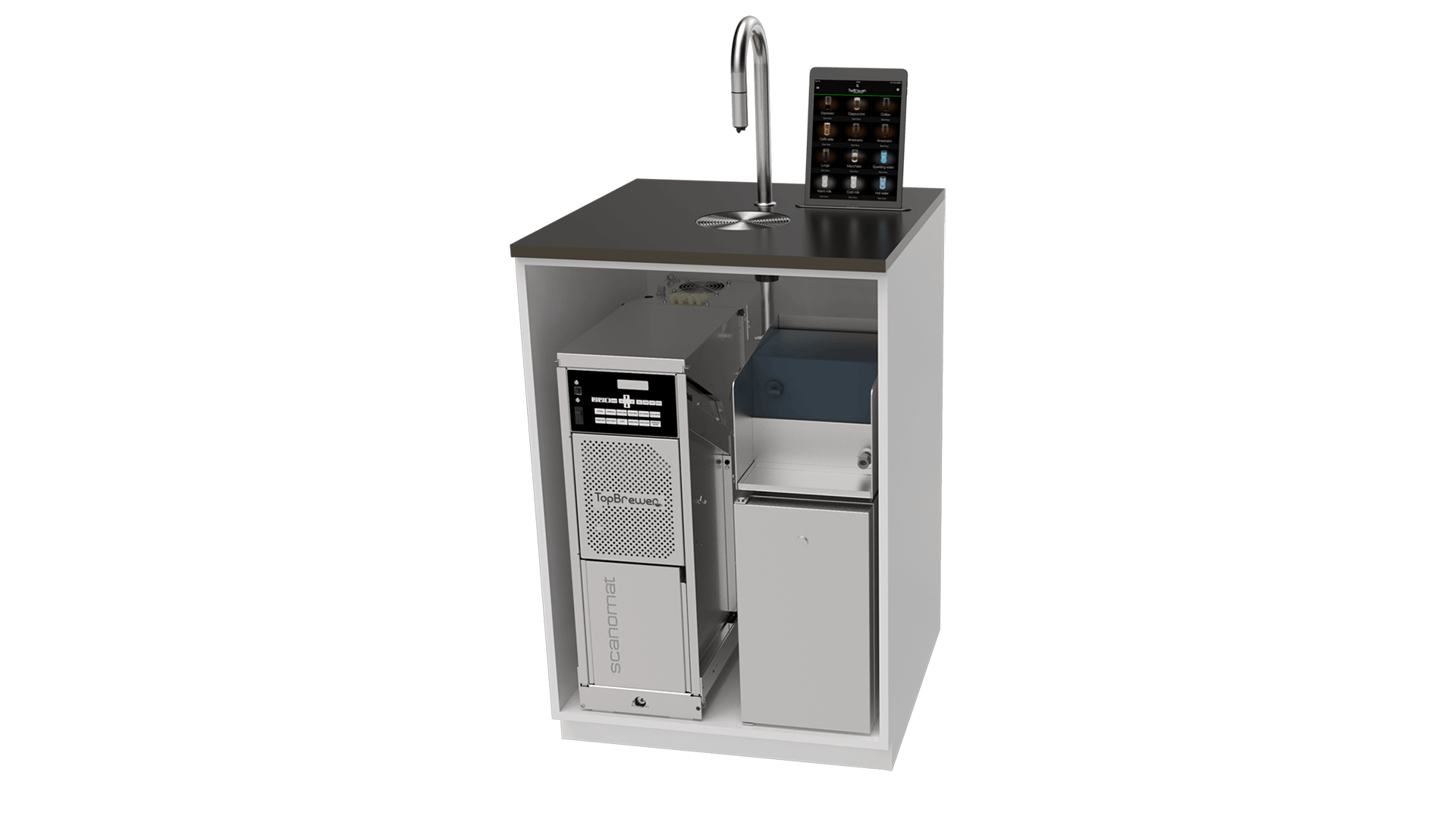

Illustration shows 1 x 600mm standard cupboards
Power supply:
1 x 32amp single phase commando plug with isolator switch for TopBrewer
1 x 13amp double socket for iPad, fridge & chiller;
Mains water supply:
1 x Washing machine valve 15mm x ¾”
Waste:
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap
Ventilation:
Routed in doors and kick-plate
See installation guide for details
Design options
The TopBrewer comes with a variety of design options. Try the virtual TopBrewer design selector.
Downloads
Not quite what you are looking for?
Contact Us
Let us help you find the perfect TopBrewer configuration. TopBrewer is a modular solution and we have many more configurations available, including slimline, space-saving options. Please do not hesitate to contact us for help configuring the right solution for your project. Get in touch to arrange a chat with one of our specification experts.
